Detalles del producto
Lugar de origen: Porcelana
Nombre de la marca: SENDA
Certificación: ISO9001
Número de modelo: SD001
Pago y términos de envío
Cantidad de orden mínima: 1 por ciento
Precio: USD10/pcs
Detalles de empaquetado: Embalaje simple / embalaje de caja de plástico / ampolla / o solicitado por los clientes (para cuchi
Tiempo de entrega: 7-15 días de trabajo
Condiciones de pago: L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad de la fuente: 2000 piezas/boca
Revestimiento: |
Teflón |
Ángulo de corte: |
24-30 grados |
Diámetro de la cuchilla: |
180-610 mm |
Tamaño personalizado: |
Sí |
Tratamiento superficial: |
Recubrimiento de estaño disponible |
Longitud del mango: |
4 pulgadas |
Espesor: |
0.1-6 mm |
Color: |
Plata |
Innovador: |
Afilado |
Parada de superficie: |
0.1 mm |
Pieza de trabajo: |
papel, cinta |
Dureza de la cuchilla: |
58-60 HRC |
Cantidad: |
10 piezas |
Precisión: |
Corte de alta precisión |
Compatibilidad: |
Varios materiales de cinta |
Revestimiento: |
Teflón |
Ángulo de corte: |
24-30 grados |
Diámetro de la cuchilla: |
180-610 mm |
Tamaño personalizado: |
Sí |
Tratamiento superficial: |
Recubrimiento de estaño disponible |
Longitud del mango: |
4 pulgadas |
Espesor: |
0.1-6 mm |
Color: |
Plata |
Innovador: |
Afilado |
Parada de superficie: |
0.1 mm |
Pieza de trabajo: |
papel, cinta |
Dureza de la cuchilla: |
58-60 HRC |
Cantidad: |
10 piezas |
Precisión: |
Corte de alta precisión |
Compatibilidad: |
Varios materiales de cinta |
1. Top and Bottom Slitting Knives for Paper Processing Making Industry.
We support the paper processing industry with efficient blades and knives.
Including but not limited: Top and Bottom Slitting Knives, Multi-groove Knife, Circular Dished Knife, Cross Cutting knife, Cut-off,
2. Knives and Accessories for the Tissue Converting Industry. (Can be customized according to drawings)
Including but not limveited: Top and Bottom Slitting Knives, Log Saw Blades, CBN grinding wheels, Perforation and anvil knives, Handkerchief knives, Packaging knives, Napkin knis, Cross Cutting knife, etc.
3.Machine Knives for Corrguated Cardboard Industry
We supply standard and custom designs.Our product range for the corrguated cardboard industry includes:
Including but not limited: carbide slitting knife, Cross Cutting knife, Circular Knives and Straight Knives with and without teeth, grind wheel, etc.
Industrial Blades Materia Steel Grade Table
|
|||||
Categories
|
China(GB/T YB)
|
Euro(DIN/BS/NF)
|
American(AISI)
|
Japan(JIS)
|
ISO
|
Alloy
Tool
Steel
|
9CrSi
|
―
|
―
|
―
|
―
|
6CrW2Si
|
―
|
―
|
―
|
50WCrV8
|
|
Cr12Mo1V1
|
1.2379
|
D2
|
SKD 11
|
X153CrMoV12
|
|
Cr12MoV
|
―
|
―
|
―
|
―
|
|
4Cr5MoVSi
|
1.2343
|
H11
|
SKD6
|
X37CrMoV5-1
|
|
4Cr5W2VSi
|
1.2606
|
H12
|
SKD62
|
―
|
|
4Cr5MoV1Si
|
1.2344
|
H13
|
SKD 61
|
X35CrMoV5-1
|
|
High
Speed
Tool
Steel
|
W18Cr4V
|
1.3355
|
T1
|
SKH2
|
HS18-0-1
|
W6Mo5Cr4V2
|
1.3341/1.3343
|
M2
|
SKH51
|
HS6-5-2
|
|
W6Mo5Cr4V3
|
1.3344
|
M3
|
SKH53
|
HS6-5-3
|
|
W6Mo5Cr4V2Co5
|
1.3243/1.3245
|
M35
|
SKH55
|
HS6-5-2-5
|

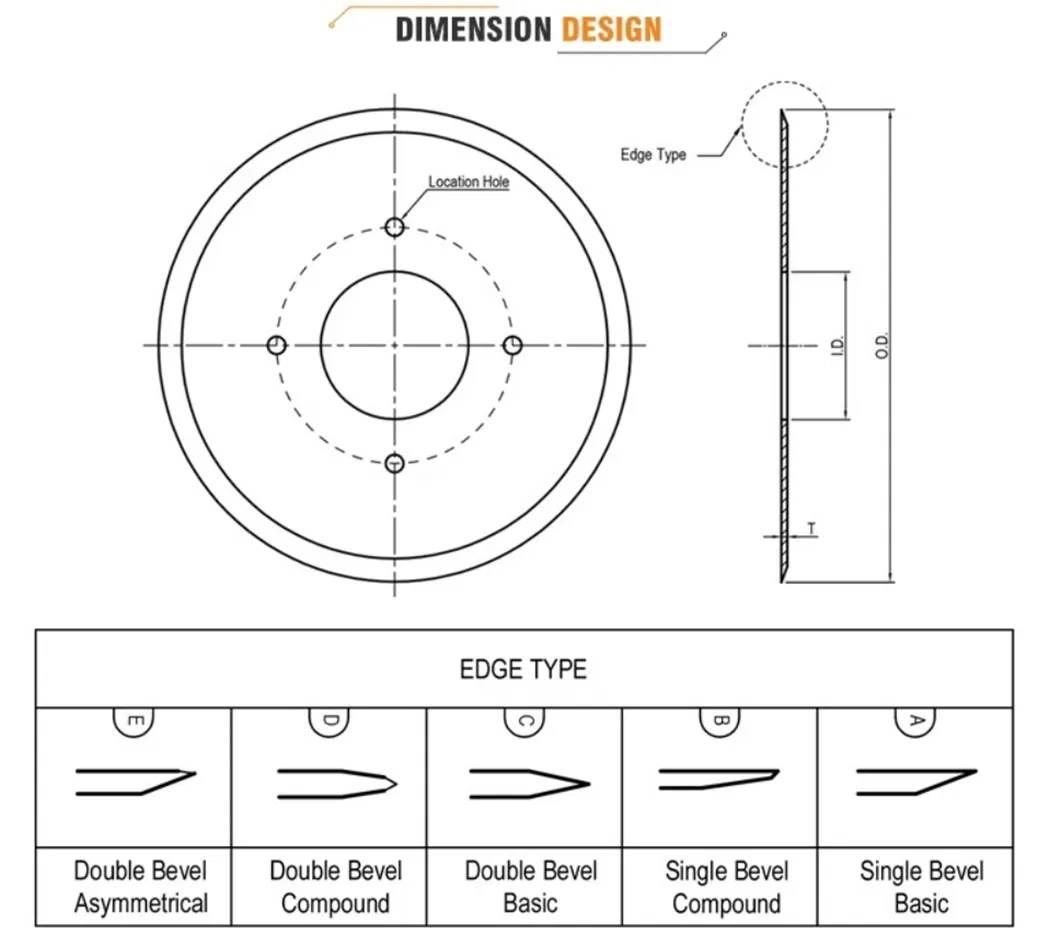

Specification | Outer diameter | Inner diameter | Thickness | Knife edge type | Material |
Disc type knife | |||||
75x45x1.2 | Φ75 | Φ45 | 1.2T | Single/double side | YG12/YG10X/SKH-51/SKD-11 |
90x60x1.2 | Φ90 | Φ60 | 1.2T | Single/double side | YG12/YG10X/SKH-51/SKD-11 |
105x70x1.2 | Φ105 | Φ70 | 1.2T | Single/double side | YG12/YG10X/SKH-51/SKD-11 |
105x75x1.2 | Φ105 | Φ75 | 1.2T | Single/double side | YG12/YG10X/SKH-51/SKD-11 |
110x75x1.2 | Φ110 | Φ75 | 1.2T | Single/double side | YG12/YG10X/SKH-51/SKD-11 |
Flat round knife | |||||
80x40x1.0 | Φ80 | Φ40 | 1.0T | Single/double side | YG12/YG10X/SKH-51/YG12/SKD-11 |
90x60x1.0 | Φ90 | Φ60 | 1.0T | Single/double side | YG12/YG10X/SKH-51/YG12/SKD-11 |
120x40x1.0 | Φ120 | Φ40 | 1.0T | Single/double side | YG12/YG10X/SKH-51/YG12/SKD-11 |
half cut-off slitting knife | |||||
70x50x1.0 | Φ70 | Φ50 | 1.0T | double side | YG12/SKH-51 |
80x50x1.0 | Φ80 | Φ50 | 1.0T | double side | YG12/SKH-51 |
100x60x1.0 | Φ100 | Φ60 | 1.0T | double side | SKH-51 |
Senda has been in the industrial blades and knives since 1998, we specialized in providing the replacement of blades for all the equipment from our large stock and professional services. Senda offer blades and knives for many industrials mainly for metal, paper and wood fields, providing our best services for the customers all over the world.
Senda located at Wuxi Xishan Industrial Zone, starting from 1998, we focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
Senda history:
1998 the founder Alex Lee established the Senda factory, there’s only 6 employees at the beginning.
2000 Senda built the own heat-treatment workshop for the blades.
2003~2005 we build the cooperation with the largest steel factory in China, Bao Steel, on the research and development of new material, and providing the blades for Bao Steel.
2006~2007 Senda invite German professionals to our factory to guide the heat-treatment process and technology, and perfect our quality management system and new testing equipment.
2008 Senda knives for paper and metal industrials were ready for export.
2011~2013 Senda developed the SLD material specially used for shearing high strength steel. And we also start to make the tungsten carbide knives.
Till now, we are still focus on research and development of new material and products, seeking more foreign markets shares to build a popular brand.
1. OEM and customized service.
2. Full machining, primer coating, surface treatment.
3. Complete material testing process.
4. Quality control
